Gas Discharge Tube Lightning Arrestors
0-7 GHz Lightning Arrestor with 4.3-10 Female to 4.3-10 Female Bulkhead Connectors
Gas Discharge Tube Lightning Arrestors
0-7 GHz Lightning Arrestor with 4.3-10 Female to 4.3-10 Female Bulkhead Connectors
SOLUTIONS PARTNERS
Ventev is a trusted partner to some of the biggest networking names in the world. We work with Aruba, AT&T FirstNet, Cisco, Fortinet, Mist, Motorola/Extreme, Samsung, and many others to provide an ecosystem of products to connect, protect, and enable the wireless world.
Gas Discharge Tube Lightning Arrestors
0-7 GHz Lightning Arrestor with 4.3-10 Female to 4.3-10 Female Bulkhead Connectors

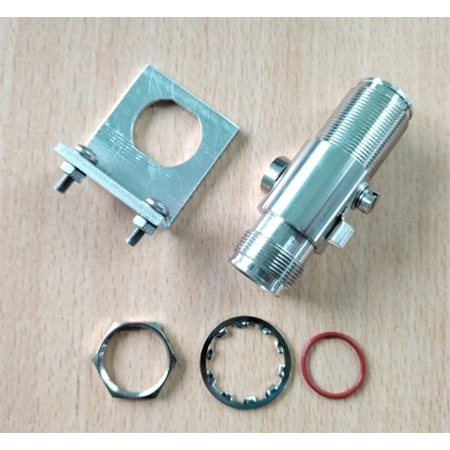

Ventev’s Lightning Arrestor is a bi-directional gas discharge tube suppressor that features wide-band operation up to 7 GHz and is rated at IP67. Simply attach the lightning protector to an access point to help protect an entire network, outdoor antennas, and other wireless equipment from the build-up of static electricity. It is recommended that you use 11 American Wire Gauge (AWG) ground wire.
*Ventev’s lightning arrestors have been evaluated for compliance with the Reduction of Hazardous Substance, ROHS 3 Directive 2015/863/EU, and have been determined to not contain substances in excess of RoHS 3 Maximum Concentration Levels
DETAILS
| MFG PART NUMBER | V-LP-074F-BHF |
| SKU | 608364 |
| Dimensions | 2.19 x 0.91 x 0.91 in. |
| Weight | 0.28 lb |
SPLITTER/TAPPER SPECIFICATIONS
| Connector Type | 4.3-10 Female |
Downloads
Datasheet
Download
