698-2700 MHz 2/4 dBi LTE Omni Surface Mount Antenna with 3/8" Diameter Bushing

REQUEST QUOTE/SAMPLE

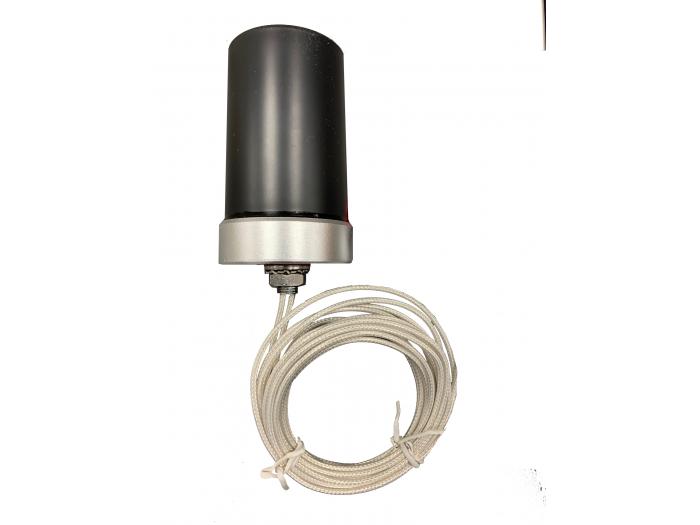

Ventev's 698-2700 MHz 2/4dBi omnidirectional surface-mount LTE antenna is designed for outdoor IoT and Mobile networks operating primarily in the 698-960/1710-2700 MHz bands. The antenna's 3/8" bushing allows it to insert into reclosers and other standard outdoor enclosures without enlarging the mounting holes. The unterminated leads allow insertion of the two leads through the 3/8" hole, and are typically terminated in a work shop or in the field. The two leads provide connections for primary and diversity antenna ports found on many popular cellular modems.

DETAILS

MFG PART NUMBERM3020040O2D1818SG
SKU254058
Weight

1.50 lb

Warranty

2 Years

ANTENNA SPECIFICATIONS

Application

Outdoor

Gain

2/4 dBi

Length of Lead

72 in

Operating Frequency Range

698-806 MHz, 824-896 MHz, 894-960 MHz, 1695-1890 MHz, 1890-1910 MHz, 1910-2180 MHz, 2300-2500 MHz, 2500-2700 MHz

Number of Ports

2

Horizontal Beamwidth

360°

Vertical Beamwidth

65°
