Multiband 6-in-1 Omnidirectional Sharkfin Antenna with 2 ports 617-6000 MHz, 3 ports 2.4/5 GHz, 1 port GNSS, and 1 port Whip

REQUEST QUOTE/SAMPLE

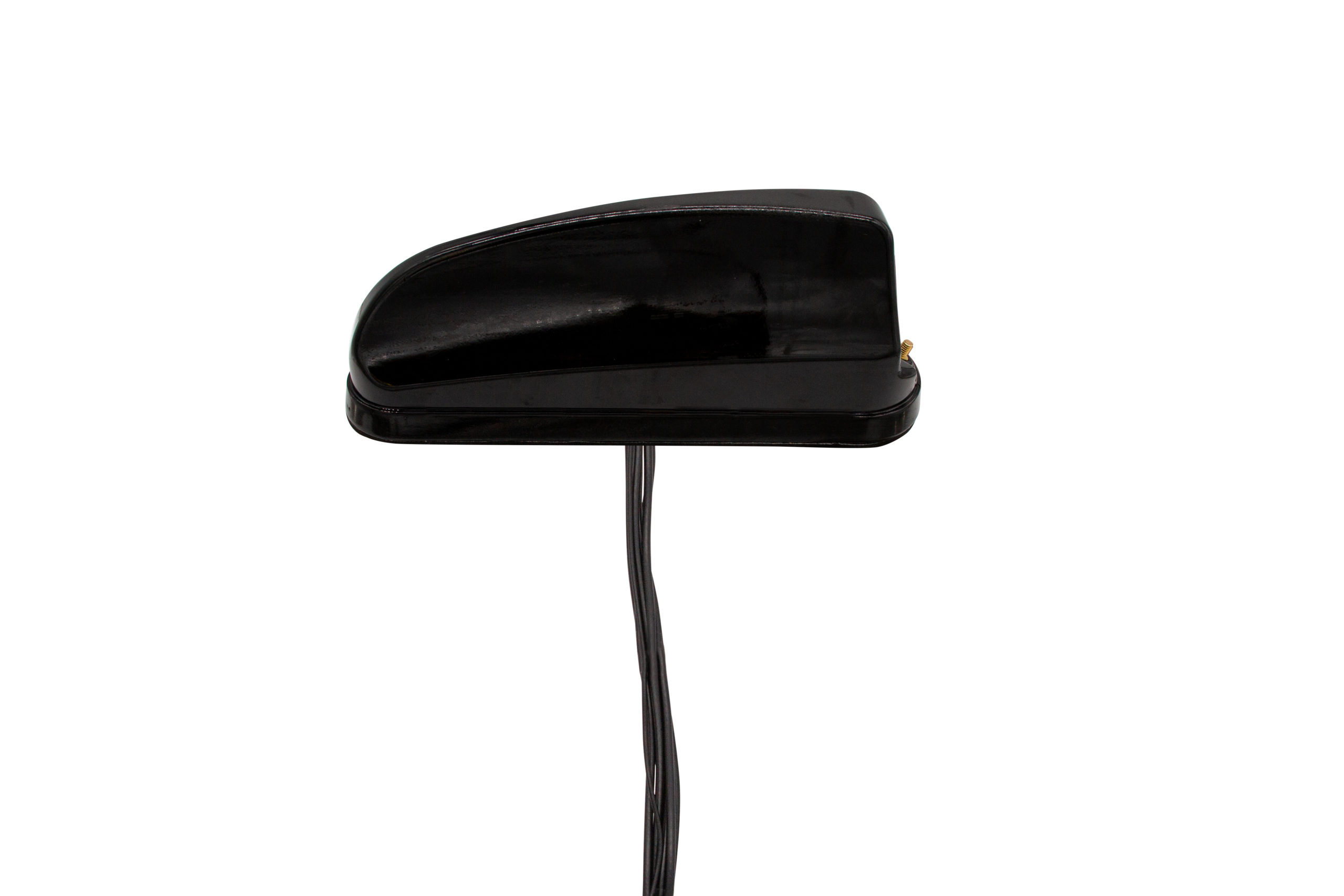

Ventev's Sharkfin Omni antenna's 2x2 Ultra-wideband (617-6000MHz) to support MIMO/diversity at 4G/5G, 3x3 MIMO Wi-Fi 2.4/5GHz, GNSS/GPS antenna w/ 26 dB gain LNA, and external whip supports most 5G FR1. This antenna includes 2 ports with 617-6000 MHz, 3 ports at 2.4/5 GHz, 1 port GNSS, and an additional pass-thru port for whip antenna. It is indoor and outdoor rated with a UV-stabilized radome. It is compatible with a wide array of mobile and industrial gateways and includes SMA Male and RPSMA Male connectors on the leads.

DETAILS

MFG PART NUMBERVM-UWG231OS-SM
SKU270295
Unit of Measure

1 Each

Dimensions

11.2 x 3.15 x 4.3 in

Weight

3.5 lb

Warranty

2 Years

ANTENNA SPECIFICATIONS

Antenna Type

Omnidirectional

Application

Indoor/Outdoor

Operating Frequency Range

2.4 GHz, 5 GHz, 902-928 MHz, 1695-1890 MHz, 1890-1910 MHz, 1910-2180 MHz, 2300-2500 MHz, 2500-2700 MHz, 3300-3550 MHz, 3550-3700 MHz, 3700-4200 MHz, 5150-5925 MHz, 5925-6000 MHz, GPS 1575.42 MHz

Number of Ports

6 + 1 external for Whip antenna

RF Connector

RPSMA Male, SMA Male

Downloads

Datasheet

Download
